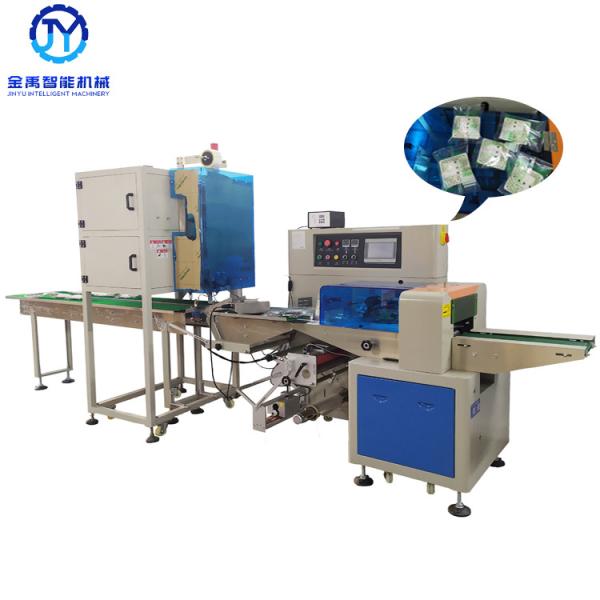

Switch Panel Flow Packing Machine With Screw Falling Machine
Feature:
1.Wecon controller ,3 Servo motors, flexible bag length setting and cutting , saving time film.
2.Touchable human –machine operation , convenient and quick parameter seyying.
3.Self diagnosis failure function , clear failure display.
4.High sensitivity optical electical color mark tracking and digital input cut position which makes the sealing and cutting more accurate.
5.Separete PID control to temperature , suitable for various packing materials.
6.Stopping the machine in selected position , no , sticking to the knife and no waste packing film.
7.Simple driving system , reliable working , convenient maintenance.
8.All the controls is are achieved by software , convenient for function adjusting and upgrading.
9.Automatic sense material length , automatic packaging products , no product no packaging , don’t need to adjust the bag length.
10.High precision auto card feeder, zero error card issuing function, touch screen simple settings, leaflets or multiple can be.
11.Auto counting screw,auto feeding system,auto packing,lack of material automatic alarm function!
Specification:
| Model | 350XD |
| Film width | Max. 350mm |
| Bag length | 100~400mm |
| Bag width | 50~160mm |
| Product height | Max. 60mm |
| Film roll diameter | Max. 320mm |
| Packing speed | 10~80bag/min |
| Powder | 220V,50/60Hz,2.8KW |
| Dimension | (L)4020×(W)720×(H)1320mm |
| Machine weight | 550Kg |
Optional device:
Date printer: For print the manufacturing date
Punching hole: For air-exhausting
etc.
Sample display:
We will offer you:
1. Offer sample packing service for reference.
2. Offer related product packaging video
3. Offer customized professional packing solution.
4. Offer service for irregular visits and equipment maintenance
5. Offer pre-sales and after-sales service
